Detalhes do produto
Lugar de origem: Guangdong, China
Marca: Longyuan
Certificação: FCC CE RoHS ISO9001
Número do modelo: LY-8821
Termos de pagamento e envio
Quantidade de ordem mínima: 1 parte
Preço: negotiable
Detalhes da embalagem: Pacote da caixa: 2 camadas/caixa, 100PCS/CTN
Tempo de entrega: dias 5-15work
Termos de pagamento: L/C, D/A, D/P, T/T, Western Union
Habilidade da fonte: 20000 partes/partes por Dia
Aplicação: |
Armário de coleta inteligente, máquina de venda automática |
Porto: |
Shenzhen |
Tensão avaliado: |
DC12V (5-24V disponível personalizar |
Trabalho atual: |
200mA |
Tamanho do corpo de bloqueio: |
70,6 mm x 55,6 mm x 13,4 mm |
Peso com gancho: |
166g |
Material do fechamento: |
SPCC, Metalurgia do Pó |
Do poder tempo máximo sobre: |
menos de 5 segundos |
Aplicação: |
Armário de coleta inteligente, máquina de venda automática |
Porto: |
Shenzhen |
Tensão avaliado: |
DC12V (5-24V disponível personalizar |
Trabalho atual: |
200mA |
Tamanho do corpo de bloqueio: |
70,6 mm x 55,6 mm x 13,4 mm |
Peso com gancho: |
166g |
Material do fechamento: |
SPCC, Metalurgia do Pó |
Do poder tempo máximo sobre: |
menos de 5 segundos |

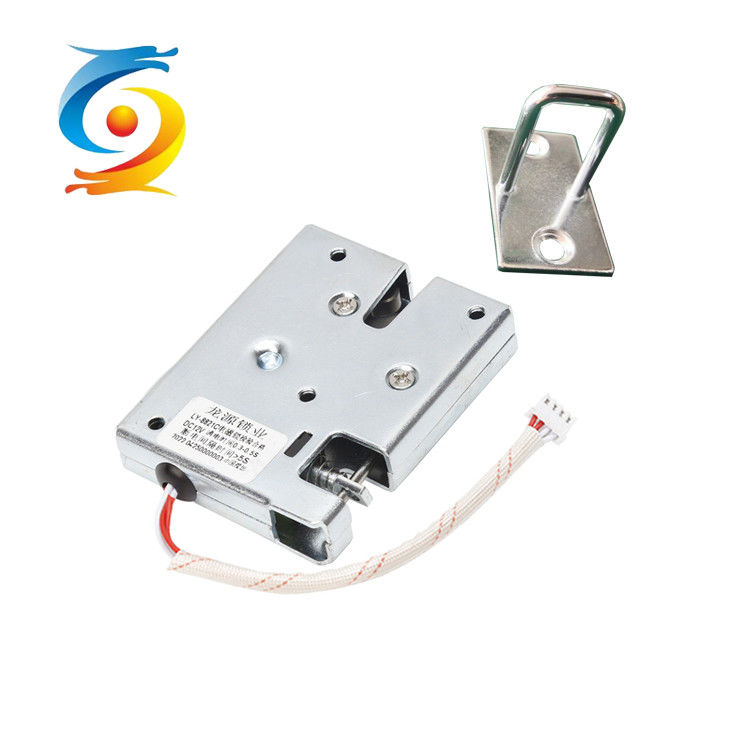

China OEM Intelligent Parcel Locker Locks Multifamily Smart Express Cabinet Lock
Product Advantages
1. High sensitivity, power on unlocking instant, less than 1second
2. Safty, shockproof, pry-proof, rust-proof
3. Long lifespan, electromagnetic lock can be used repeatedly more than 200,000times
4. The electronic cabinet lock is installed firmly, and the installation process is simple and flexible.
Company Profile
Shenzhen Longyuan lock factory located in 7th floor No.3 Huangdang Rd, Huiwangsheng Industry Park, Dalang St.,Longhua Dist.,Shenzhen China.
We are professional electromagnetic lock factory.We can offer several different type locks for different usage.Such as smart lockers, supermarket self service storage cabinet, smart vending machine, letter box, power exchange cabinet, left luggage cabinet etc.
We have our own design and research Center.
Principle
Electromagnetic Lock is based on 51 series single-chip microcomputer (AT89051) and equipped with corresponding hardware circuit to complete password setting, storage, identification and display, drive electromagnetic actuator and detect its driving current value, receive alarm signal sent by sensor, send data and other functions.
Product Description
|
Product Name
|
Electronic magnetic lock
|
|
Model
|
LY-8821C
|
|
Brand
|
Longyuan Lock
|
|
Size
|
70.6mmx55.6mmx13.4mm
|
|
Weight with lock hook
|
165g
|
|
Material of lock body
|
SPCC
|
|
Material of lock tongue
|
Powder Metallurgy
|
|
Surface treatment
|
Galvanized
|
|
Cable outer leakage length
|
170mm(accept customized)
|
|
Working voltage
|
DC12V (Voltage customized)
|
|
DC12V (Voltage customized)
|
2A
|
|
Min Unlock Voltage
|
9.5V
|
|
Maximum power
|
24W
|
|
Manner of working
|
Open after power on
|
|
Reaction time
|
0.3sec
|
|
Blackout interval
|
>5sec
|
|
Working temperature
|
-40℃ to +80℃
|
|
Working humidity
|
95%
|
|
Working life
|
more than 100,000 times
|
|
Sample
|
Available
|
|
OEM
|
Accepted
|
|
Signal detection/switch(open/close)
|
Open/ Close Feedback for option
|
|
Certification
|
CE,ISO9001, RoHS
|
|
Warranty
|
1year
|
Packing List
Standard package: Carton box package, 50pcs/layer, 100pcs/carton.
Carton size:350mmx200mmx140mm.
Lock latch: 1000pcs/carton
Mounting screws: 9000pcs/carton
Customized package also available.
